Falcon 3DX

Automatic Jewelry
3D Scanner

For the savvy jewelry designers who want to push their limits one step further. From design modification to digital archiving, Falcon 3DX is perfect for your jewelry design process.

  • Suitable for jewelry and audiology applications
  • The most affordable price in its class
  • High precision, high accuracy data
  • Desktop size
  • Perfect for 3D printing

Applications

  • Jewelry
    Design replication, modification, custom-fit pieces, masterpiece digitization, converting organic shaped object into 3D.
  • Audiology
    Digitization of auditory passage impressions for making hearing aids.
  • Reverse Engineering
    Quickly digitize a part or object and create a surfaced CAD models which can be modified.
  • Quality Inspection
    Compare scanned 3D data (STL) vs design (CAD) data for deviation analysis.
  • 3D Printing
    Print 3D object using scanned data.

Specifications

Method

Optical Structured Light Technology

Resolution

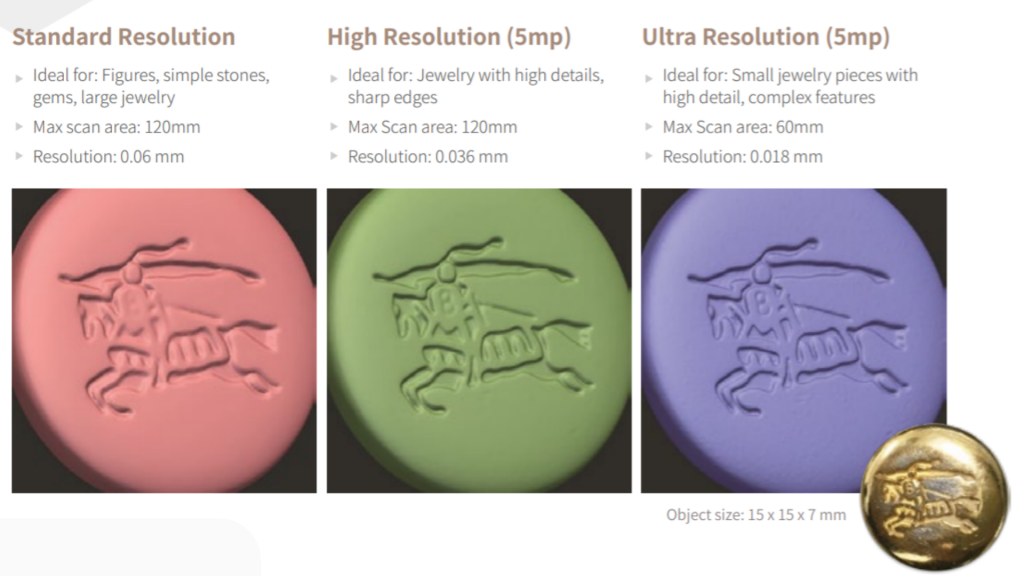

2MP, 5MP (Twin-Camera)

Scan Area Size

FOV 120mm (2MP) & FOV 50, 120mm (5MP) / FOV 4.724 inch (2MP) & FOV 1.968, 4.724 inch (5MP)

Axis

Automatic 2-axis (Rotation 360° / Swing 270°)

Dimension

295(W) X 475(H) X 340(D) mm / 11.614(W) X 18.700(H) X 13.385(D) inch

Weight

15 kg / 33.069 lbs

Data Output

Open STL (Polygon Mesh / Fully ready for 3D printers)

Power

110~240V, 50~60Hz

Interface

USB 3.0

OS

Windows 10 (64bit)

Product Highlights

Design Use Cases
